Mastering External References (Xrefs) in 4M CAD

Why Use External References?

External References (Xrefs) let you link drawings rather than merge them. This keeps large projects organized, promotes collaboration, and ensures that updates in one file automatically appear in every file that references it. Instead of copying content into a master drawing, you “attach” the other DWG as a live reference - saving file size and reducing duplicated work.

How to Attach an Xref

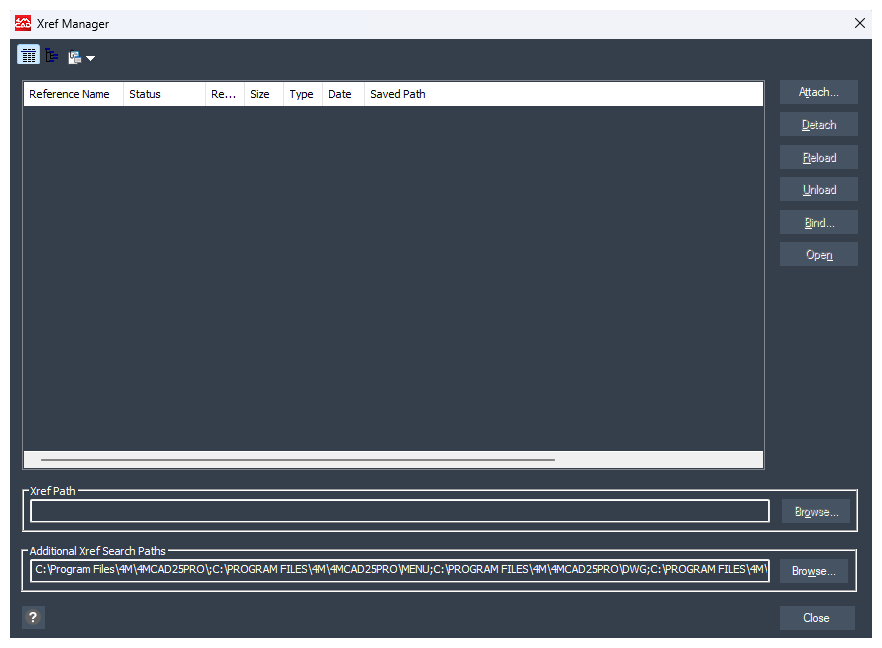

1. Open the Xref Manager

   • Ribbon: Click Insert → Xref.

   • Command line: Type XREF and press Enter.

   • You’ll see the External References palette, where you can attach, reload, or unload drawings.


2. Attach a New Xref

   • In the Xref palette, click Attach DWG (or click the paperclip icon).

   • In the Select File dialog, browse to the DWG you want to reference and click Open.

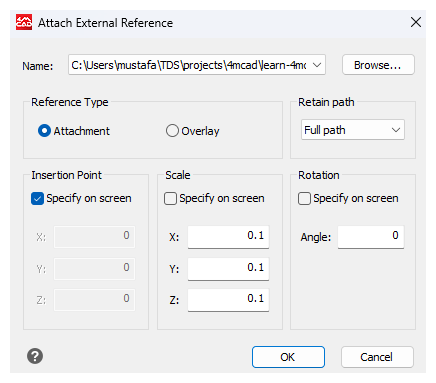

   • In the Attach External Reference dialog, set these options:

     • Reference Type: Choose Attachment (Xref) or Overlay (see next section).

     • Path Type: Select Full Path, Relative Path, or No Path (see “Managing Paths” below).

     • Insertion Point/Scale/Rotation: You can accept defaults (0,0,0) or specify values if you want the Xref placed at a certain location and orientation.

     • Click OK to attach the reference.


3. Verify the Xref
   Once attached, you’ll see the Xref listed in the palette and the referenced geometry in the drawing. If the referenced file changes and you save it, simply click Reload in the Xref palette to update it in your current drawing.

Attach vs. Overlay: What’s the Difference?

• Attach

  • Treats the Xref as a permanent dependency.

  • When someone else’s drawing has its own Xref, your drawing’s “attached” Xref will show up under theirs if they burden their file with relative references.

  • Use Attach when you want the Xref to cascade into any drawing that references your drawing.

• Overlay

  • Semantically “hides” the Xref from higher‐level references.

  • If Drawing A overlays Drawing B, and Drawing C attaches Drawing A, Drawing B’s geometry does not appear in Drawing C.

  • Use Overlay to prevent nested references from propagating beyond your file.

Choose Overlay if you want to keep Xref layers local and not pass them on to drawings higher in the reference chain. Otherwise, use Attach.

Managing Paths: Absolute vs. Relative

• Full Path (Absolute)

  • Stores the entire drive/folder path (e.g., C:\Projects\SiteA\SitePlan.dwg).

  • Pros: Always finds the Xref if the file remains in the same location.

  • Cons: If you move the whole project folder to another computer or relative folder, the link breaks.

• Relative Path

  • Stores the path relative to your current drawing (e.g., ..\SiteA\SitePlan.dwg).

  • Pros: Ideal if all project files (master and Xrefs) live in the same folder hierarchy - moving the entire folder keeps links intact.

  • Cons: Requires a consistent folder structure when sharing files.

• No Path (Names Only)

  • Stores only the filename. 4MCAD searches the current folder, then any folders listed under Options → Files → Support File Search Path.

  • Pros: Good for simple projects or when you want to keep file references very portable.

  • Cons: If there’s another DWG with the same name in a different folder on your search path, 4MCAD may load the wrong file.

Working with Xref Layers

By default, every layer from an attached Xref shows up prefixed (for example, SITEPLAN$0). You can control layer visibility and freezes in two ways:

1. Layer Properties Manager

   • From your master drawing, open the Layer Properties Manager.

   • You’ll see each Xref layer listed, usually prefixed by the file’s name.

   • You can freeze, lock, or change color/linetype exactly as if the layer were native to your drawing.

2. Per‐Viewport Layer Control

   • In Paper Space viewports, freeze Xref layers in specific viewports to declutter other views.

   • Select the viewport, then open Layer Properties and freeze Xref layers only in that active viewport.

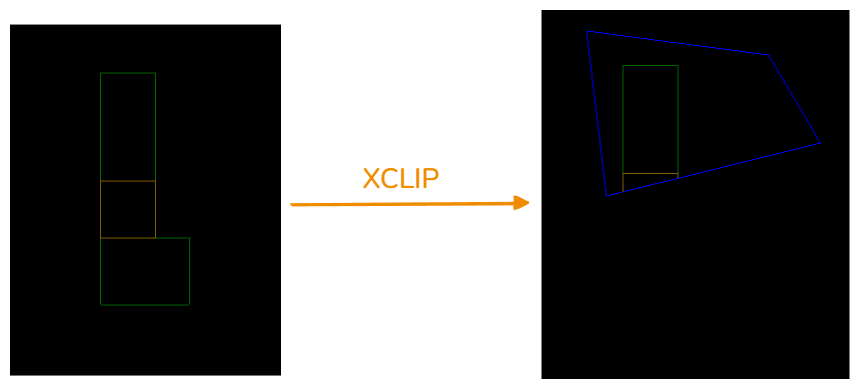

Clipping an Xref

• Use the XCLIP command to create a clipping boundary (rectangular or polygonal). Everything outside that boundary is hidden.

• After typing XCLIP, select the Xref and then pick or draw the clipping boundary.

Binding vs. Inserting Xrefs

When your project is complete or you need to share a self‐contained file, you can convert Xrefs into regular drawing objects:

• Bind

  • Converts the Xref into a block inside your drawing.

  • You have two sub-options:

    • Bind: Prefixes layer names with the Xref filename (e.g., SITEPLAN$0>LAYER1), keeping them unique.

    • Insert: Merges Xref layers into your drawing’s layers if names match, and discards the file prefix.

• Insert (in the Xref palette)

  • Immediately collapses the Xref into your drawing, effectively copying all referenced geometry.

  • No longer dynamic- edits to the original Xref DWG won’t update this drawing.

Choose Bind when:

• You want layer names preserved and unique.

• You might need to reverse the process or identify which objects came from the Xref.

Choose Insert when:

• You’re sure no further reference updates are needed.

• You want to merge layers and simplify the drawing.

To bind or insert, right-click the Xref in the External References palette and choose Bind, then pick Bind or Insert.

Tips & Best Practices

• Keep File Names Simple but Descriptive
  Name Xrefs in a way that immediately indicates their content (e.g., SitePlan.dwg, Floor1.dwg, DetailWindow.dwg). This reduces confusion when multiple DWGs share common layer names.

• Maintain a Consistent Folder Structure
  If you’re using relative paths, ensure your master and Xref DWGs stay together in the same folder hierarchy. That way, you can zip or copy the entire project folder without breaking links.

• Avoid Deep Xref Nesting
  Too many levels of attached Xrefs (A attaches B, B attaches C, etc.) can cause performance slowdowns and path complexity. Aim for a flat referencing structure: one master drawing with separate Xrefs rather than chaining them multiple layers deep.

• Use Overlays for Temporary or Presentation‐Only References
  If you only need to show a reference for a quick visual check - say, an adjacent parcel or a background map - attach it as an Overlay so it won’t cascade into other drawings.
